High Speed Rotary / HSR-3S

HSR-3S
Features

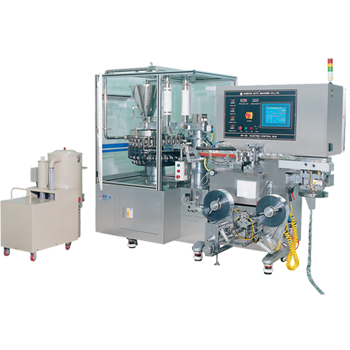

  • HSR-3S Rotary High Speed Packaging Machine is the ideal solution to fill 3 side seal pouches with smaller portions of powders or liquids with very accurate and consistent fill volumes.
  • Compact footprint and excellent efficiency helps reduce labor costs
  • Certified waterproof class of IP54 – 64
  • Film loss is reduced through the use of an automatic tensioning system
  • Includes a pressurized roller that makes secure seals after horizontal sealing head
  • Static removal device and dust collector (optional)
  • The photo-eye automatically adjusts filling positions.

Applications

Seasonings, Salts, Powders, Granules, Solids, Liquids, Pharmaceuticals, Confectionary, etc



Video

Specification



Model

HSR-3S

Capacity

300 – 600PPM (1 line)

Dimension(mm)

1,000(W) X 1,500(L) X 1,750(H)

Packing Size(mm)

Customized

Filling Capacity

3 – 15g

Power Consume

3 Phase, 220/380/440V X 50/60Hz (7 - 10Kw/h)

Compressed Air

0.5m3/min, 5 - 6kg/cm2, Comp: 5 – 7.5HP (for 2 Lines)

Weight

about 1,200 – 1,800kg

Optional Acc

Printer, First Supply Pump, Heat Device, Cutter Device,
Photo-eye System
