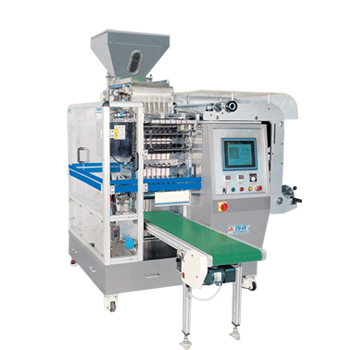

Tablet & Capsule / HTB-4V

HLQ-4V
Features
  • HTB-4V produces single serve liquid packaging designed for the pharmaceutical, health supplement and confectionary industries.
  • PLC Control enables a simple and easy user-oriented interface via the LCD control panel.
  • Photo-eye adjustment is handled via the touch screen LCD control panel.
  • Automatic tablet or capsule counting attachment for accurate count measurements.
  • Film loss is reduced through the use of an automatic tensioning system (optional)
  • Product contact areas are made of coated light metals and SUS316 for hygienic use.
  • Certified waterproof class of IP54 – 64
  • Food Safety: Complies with GMP standard - all product contact parts are in stainless steel or food grade materials.
  • Downstream equipment available to pack, stack or carton the finished product

Applications

Tablets, Capsules, Confectionary, etc


Video

Specification



Model

HLQ-4V

Packing Line

5 - 12 Lines

Capacity

400 - 800 PPM (10 Lines)

Dimension(mm)

1,692(W) X 1,995(L) X 2,340(H)

Packing Size(mm)

30 - 100(W) X 20 - 180(L)

Filling Capacity

1 - 2 Tablet

Packing Type

4 Sides Embossing Sealing

Adjustment of Print

Photo-eye print registration & Servo Control

Power Consume

3 Phase, 220/380/440V X 50/60Hz (5 - 7Kw/h)

Electric Power

Motor 0.75Kw / Heater 800 - 1200W

Weight

about 1,500 - 2,300kg
