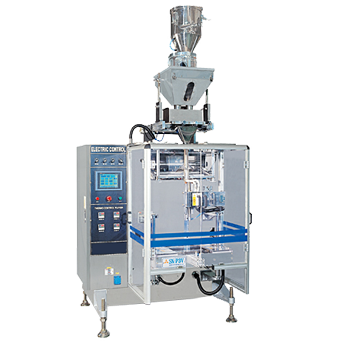

Vertical Form Fill Seal Type Powder and Liquid / HSN-P3V

- Features
-
- HSN-P3V is vertical form fill and seal (VFFS) packaging machinery that is widely used for measuring and packing fragile bulk materials accurately
- PLC Control enables a simple and easy user-oriented interface via the LCD control panel.
- Photo-eye adjustment is handled via the touch screen LCD control panel.
- Ability to fill by auger, computer scale, turn table or servo motor pump for accurate operation
- Film loss is reduced through the use of an automatic tensioning system. The sealing & cutting positions are corrected automatically
- Product contact areas are made of coated light metals and SUS316 for hygienic use.
- Continuous operating packaging machine
- Applications
-
Confectionary, Snacks, Biscuits, Coffee, Grains, Vegetables, Rice, Seeds, Condiments, pastes, liquids, etc
- Video
-
- Specification
-
Model
HSN-P3V
Capacity
1 Line: 30 - 60PPM / 2 Lines: 50 - 120PPM
Dimension(mm)
770(W) X 1,779(L) X 2,551(H)
Packing Size(mm)
50 - 250(W) X 50 - 500(L)
Filling Capacity
1 - 2 Tablet
Power Consume
3 Phase, 220/380V, 5Kw /h / 7Kw/h
Compressed Air
0.5m3/min, Comp: 5 - 10HP
Weight
about 1,500 - 2,800kg (1,2 Line)
Optional Acc
Gadget Device, Date Coder, Discharge C/V, Bucket C/V, Supply Heater, ERP Device
