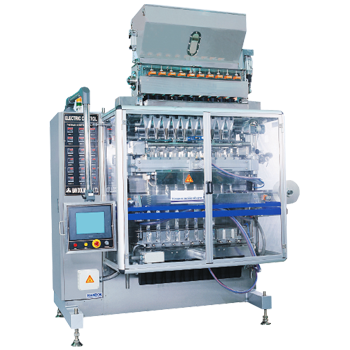

Powder / HPD-P3V

- Features
-
- HPD-P3V produces single serve stick packaging and is designed for free-flowing powders and uses VFFS rollstocks.* PLC Control enables a simple and easy user-oriented interface via the LCD control panel.
- Photo-eye adjustment is handled via the touch screen LCD control panel.
- Film loss is reduced through the use of an automatic tensioning system (optional)
- Product contact areas are made of coated light metals and SUS316 for hygienic use.
- Optional hot-stamp or ink-jet coders available
- Indicators included for product weight control and seal pressure controls
- Certified waterproof class of IP54 – 64
- Downstream equipment available to pack, stack or carton the finished product
- Applications
-
- Photo
-
- Video
-
- Specification
-
Model
HPD-P3V(II)
Capacity
200 - 550 PPM (10 Lines)
Dimension(mm)
1,400 (W) X 1,300 (L) X 2,800 (H)
Packing Size(mm)
10 - 100(W) X 60 - 200 (L)
Power Consume
3 Phase, 220/380/440V X 50/60Hz (5 - 7Kw/h)
Compressed Air
5 - 6kg/cm2, Comp: 10HP
Weight
about 1,500 - 2,300kg
Filling Capacity
0.5 - 150g
